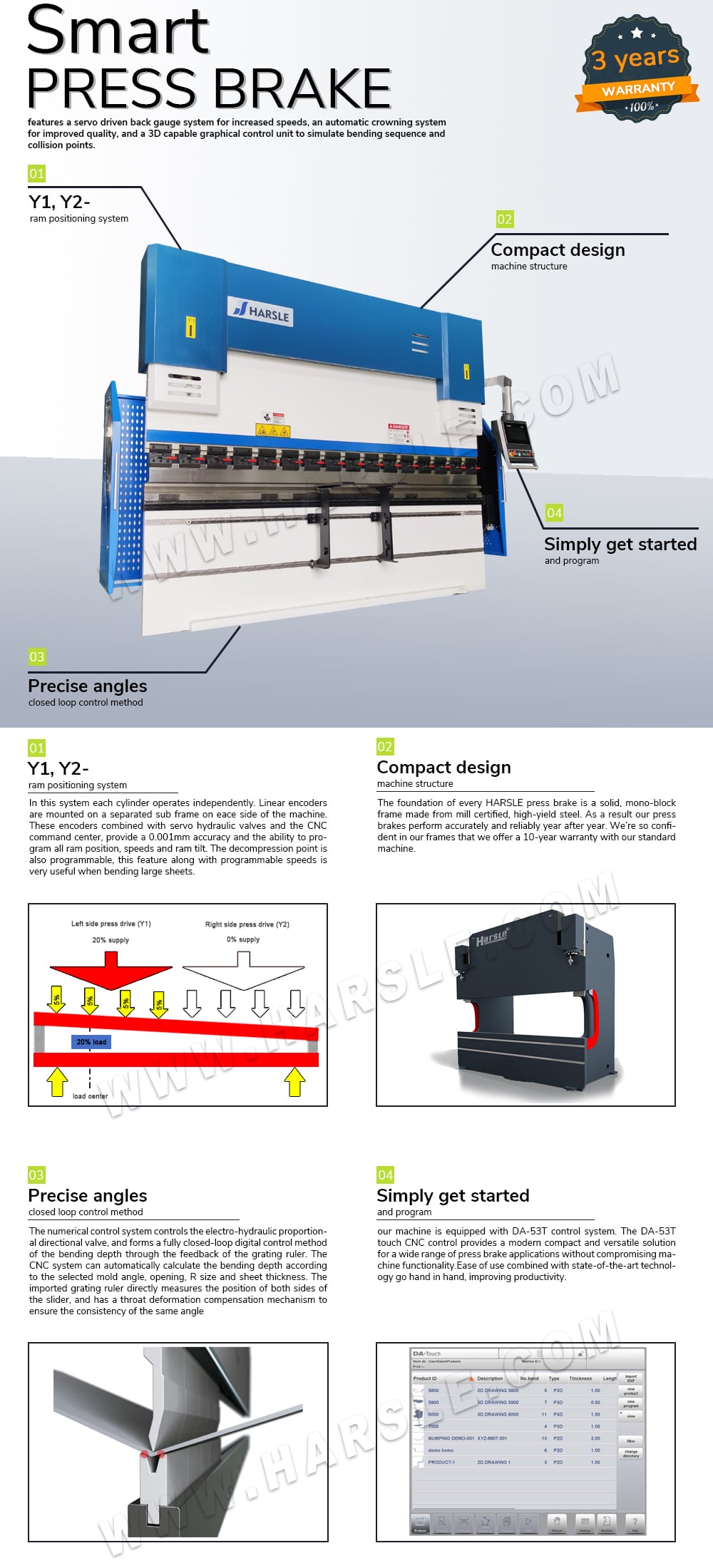

WE67K-160T3200 CNC Press Brake Machine Main introduction and appearance

There is a WE67K-160T3200 CNC Press Brake machine is advanced in technology and reliable in metal sheet bending performance. It is widely used in planes, automobiles, trucks, shipbuilding, and various fabrication industry with high production efficiency.

WE67K-160T3200 CNC Press Brake Main features

(1). WE67K-160T3200 CNC Press Brake Machine. Closed-loop control composed of electric-hydraulic servo valve imported from Germany and grating ruler from FAGOR company, Spain, with high feedback precision, accurate and stable operation, and high repeated positioning precision of slider block.

(2). The mechanism of a back stopper with multiple stopping shafts for complete functions is employed. The function workpiece, lead screw, bear, etc. are imported to ensure the stopping precision of the back stopper.

(3). The WE67K-160T3200 CNC Smart Press Brake machine body is in overall welded and overall processed structure, with internal stress eliminated by vibration aging technology, which has ensured the precision of the entire machine.

(4). WE67K-160T3200 CNC Press Brake Machine. HARSLE finite element analysis software is applied to the main parts of the machine body for analysis, which has ensured the reliability of the machine tool.

(5). Integrated control system imported from Germany is adopted for the whole hydraulic system to simplify the installation of pipelines, and to ensure stable operation as well as the simple and nice appearance of the machine tool.

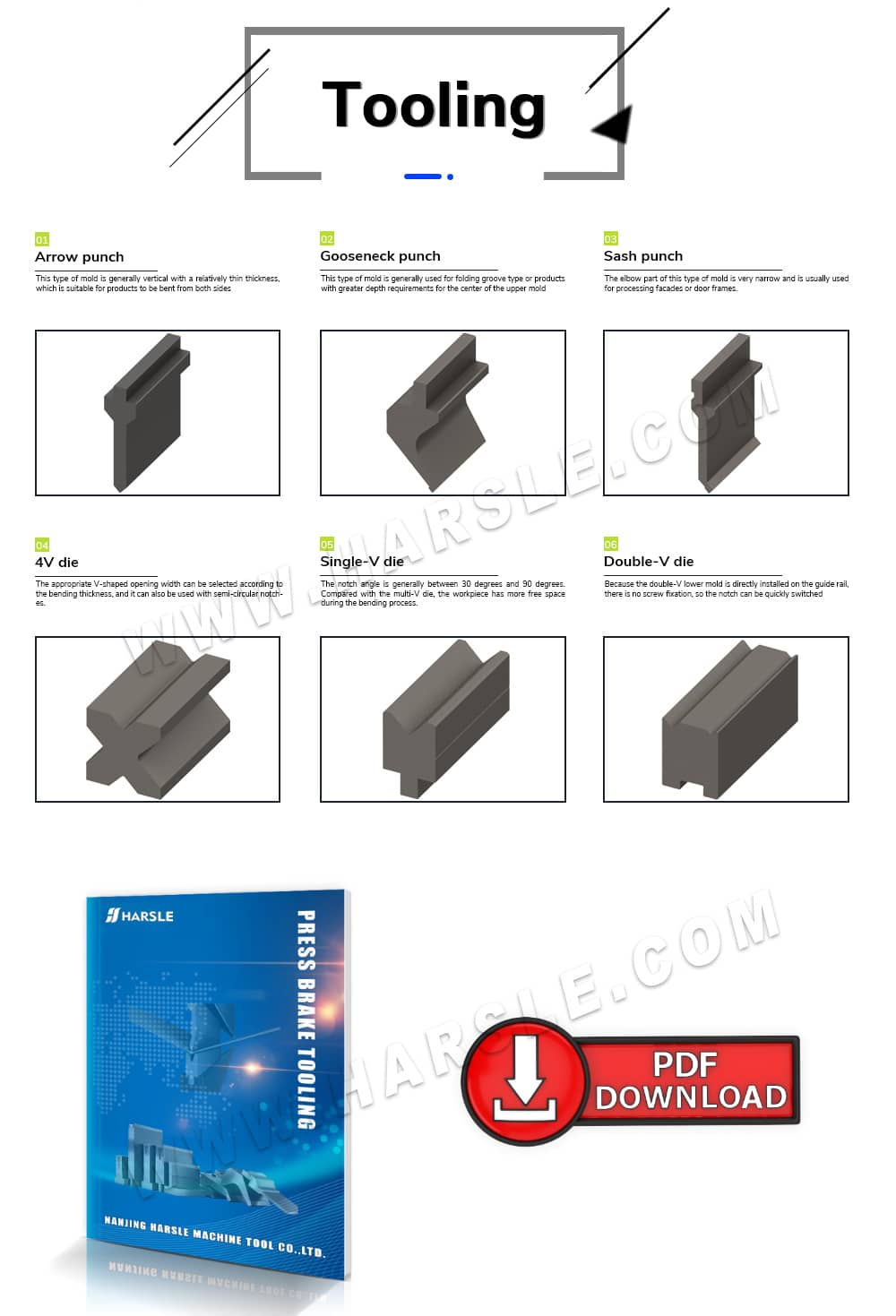

(6). Part upper-die is being readied, assemble to the length of needing workpiece so as to adapt to the particular processing workpiece.

(7). WE67K-160T3200 Smart Press Brake CNC system is using DELEM DA-53T from Holland.

(8). C-shaped plates are fitted on both sides of the machine body, and the high-precision grating ruler is mounted on the C-shaped plates, thus avoiding the influence over bending precision arising from distortion of the machine body during the bending process.

(9). WE67K-160T3200 CNC Smart Press Brake’s Oil cylinder from special manufacture and industry, seal rings imported from Japan, and pipe connections imported from EMB, Germany.

Detail photos

Installation conditions

(1). Power source：380V±10%，50HZ.

(2). Environment temperature：5～38℃ (Working temperature)

(3). Environment moisture Relative moisture 20～80%RH.

(4). Far away from powerful vibration and electromagnetic interference.

(5). No pernicious and corrosive gas, and no dust.

After Sales Service for CNC Hydraulic Press Brake

1. WE67K-160T3200 CNC Press Brake Machine. Warranty period of WE67K-160T3200 CNC Press Brake is 12 months after receiving the machine; any quick-wear part is available for free during the guarantee period under proper operation, customers only need to pay for the freight of the replaced new parts.

2. Installation and training service is optional for customers, any client can ask for this service from HARSLE, and they should assume the airfare and accommodation for our engineer during the journey.

ข้อมูล บริษัท

WE67K-160T3200 CNC Press Brake Machine. HARSLE is a leading and professional metal working machine manufacture in China, which was established in 1997 and located in the cultural ancient city of Nanjing, Jiangsu Province. After 20 years of development, it has been a famous and influential, and modern enterprise that owns three subsidiary cooperations; They are Nanjing HARSLE CNC Machine Tool Co., Ltd; and HARSLE INDUSTRIAL LIMITED. Its sales revenue has increased by over 100% yearly in recent years.

We’re one of the leading vendors of metalworking machines in China, and our factory is strictly in terms of ISO9001 for manufacturing high-quality & reliable hydraulic press, press brake, and shearing machines.
